2.11 Selecting the network ports

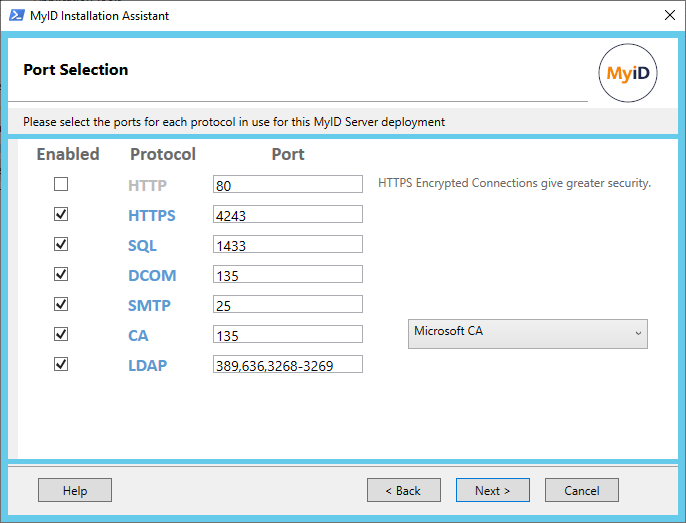

The Port Selection screen allows you to configure which ports to test.

By default, the HTTP port is deselected; you are recommended to test communications with the web server using HTTPS instead. The HTTPS port is set by default to the port used for the binding you selected on the HTTPS Selection screen; see section 2.9, Configuring https.

If you specified servers for the Email Server, CA Server, and LDAP Server options on the Server Selection screen (see section 2.8, Selecting the servers) the MyID Installation Assistant can check those connections, too.

Select the CA you are using from the drop-down list, and the MyID Installation Assistant populates the CA Port field with the default ports used for that CA.

Select the connections you want to check, provide any custom values for the ports used for those connections on your system, then click Next to proceed to the next stage.
